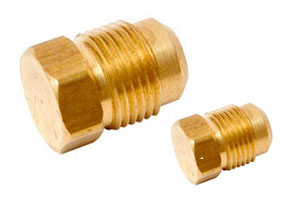

Brass Stop Plug
We manufacture and export Brass Stop Plugs Nickel Plated Brass Slotted Plugs made of Polyamide 6 and Brass are used wherever threads previously cut must be closed for preventing dust, dirt and foreign matters from entering the enclosure or equipment.
| Size | Thread | Thread Length L | Total Height H | ROD Dia D |
| M 12 | M 12X1.5 | 12.00 | 15.00 | 16.00 |
| M 16 | M 16X1.5 | 12.00 | 15.00 | 20.00 |
| M 20 | M 20X1.5 | 12.00 | 15.00 | 25.00 |
| M 25 | M 25X1.5 | 15.00 | 18.50 | 30.00 |
| M 32 | M 32X1.5 | 15.00 | 19.00 | 36.00 |
| M 40 | M 40X1.5 | 15.00 | 19.00 | 45.00 |
| M 50 | M 50X1.5 | 15.00 | 20.00 | 55.00 |
| M 63 | M 63X1.5 | 15.00 | 20.00 | 68.00 |
| M 75 | M 75X1.5 | 15.00 | 20.00 | 80.00 |
Material :
Nickel-plated brass. EN 12164 BS 2874 - CZ 114 BS 2874 - CZ 115 c345, C 353, CDA 36000, c3602,c3604, c385, cz131,cz124, CW 614n, cuzn36pb2, cuzn39pb3 & cuzn36pb3. C 675, cz 114, cz 115, en 12165 CW 721 r & CW 722r.
O-sealing element :
- Made of nitrilebutadienerubber(NBR).
- DIN ( PG Threads ).
Application :
Stop Plug used to close thread entries or means of sealing & stopping unused thread entries in flame proof enclosures .
Characteristics :
Waterproof, Dustproof, Electrical Insulation , Aging-resistant,and high ability to resist salt,acid,alkali, alcohol, grease and general solvent.
