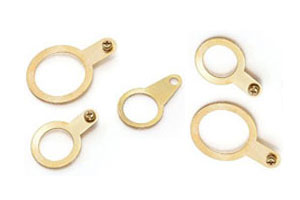

Earth Tag
We are enaged in producing a huge range of Earth tags made by quality brass material and are designed to ensure earth continuity between cable glands and electrical equipment offered in various sizes ranging between M20 to M100.
| Gland Size "V” | "Y" | "W" | "X" | "Z" |
| M20 | 6.75 | 39.6 | 33.1 | 1.5 |
| M25 | 6.85 | 45.5 | 36.5 | 1.5 |
| M32 | 12.6 | 52.0 | 40.9 | 1.5 |
| M40 | 13.4 | 59.6 | 44.2 | 1.5 |
| M50 | 13.5 | 78.9 | 58.1 | 1.5 |
| M63 | 13.5 | 87.6 | 66.8 | 1.5 |
| M75 | 13.5 | 93.7 | 72.9 | 1.5 |
| M80 | 14.0 | 128.0 | 140.0 | 1.5 |
| M90 | 14.0 | 128.0 | 104.0 | 1.5 |
| M100 | 14.0 | 128.0 | 104.0 | 2.0 |
Material :
Manufacturerd in Brass as standard. CZ 114 BS 2874 - CZ 115 c345, C 353, CDA 36000, c3602, c3604, c385, cuzn39pb3 & cuzn36pb3. C 675, cz 114, cz 115, en 12165 CW 721 r & CW 722r, cz131,cz124, cz121, en 12164 - cw606n, BS 2874 - CZ 121 Pb3 CZ 122 UNS C36000 CDA 360 DZR.
Application :
Provides an earth attachment for a cable gland.
Threads :
Metric, NPT, NPSM, ISO Pipe (BSP),PG, ET.
Features :
- Means of connection or an earth bond-around the cable gland.
- Available in various shapes & in all sizes.
- Ensure earth continuity between the electrical equipment & the gland.
- Can be coated or plated as per Customer Specification.
