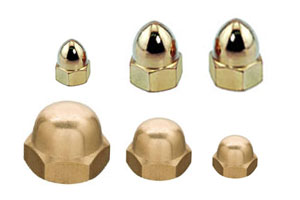

Brass Dome Nuts Acorn Nuts


We offers a qualitative range of Brass Dome Nuts, Brass Acorn Nuts, Brass Cap Nuts, Brass Cold Forged Dome Nuts, Machined Cap Nuts, Stainless Steel Acorn Nuts, Stainless Steel Bolts, Cap Nuts etc. which are developed from premium quality components and available in all standard sizes and specifications.


  • brass dome nuts acron nuts
d1 h s e
M16 28 24 26.75
M20 34 30 33.53
M18 32 27 30.14
M22 39 32 35.72
M24 42 36 39.98
M12 22 19 21.1
M14 25 22 24.49
M10 18 17 18.9
M8 15 13 14.38
M6 12 10 11.05
M5 10 8 8.79
M4 8 7 7.66
M3 6 5.5 6.08

Material :


Steel, Stainless Steel, Brass anf Nylon, EN8, EN15, AISI/SAE 1018, AISI/SAE 1045,Alloy Steel.

CZ 115 c345, C 353, CDA 36000, cz 114, cz 115, en 12165 CW 721 r & CW 722r, c3602, c3604, c385, cz131,cz124, cz121, en 12164 - cw606n, CW 614n, cuzn36pb2, cuzn39pb3 & cuzn36pb3. C 675, BS 2874 - CZ 121 Pb3 CZ 122 UNS C36000 CDA 360 DZR Brass BS 2874 - CZ 131 CW 614 N.


Threads :


Metric, UNC, UNF, BSW, BSF, NPT , BSP, BSPT, NPTF, UNEF, UNS, NPS, NPSM.


Size :


6 mm A/F to 38 mm A/F 1/4 A/F to 1 1/2 A/F M12 to M30 1/2” to 1-1/4”.


Grade :


Available in 4,6,8,10, a2, a4, 200 Series.


Finish :


Zinc plated, Chrome plated,cadmium.


Standard :


Available IN IS, DIN 1587, BS, ISO Standards.
