CW Cable Glands
We are leading Manufacturer, Supplier, and Exporter of Brass CW Cable Glands, CW3 Cable Glands, CW4 Cable Glands located in Jamnagar (India), which are used in dry indoor applications mainy exporting to international markets.
Technical Data:

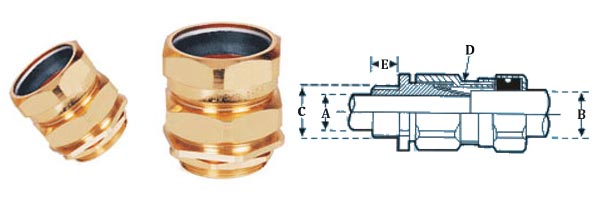

| Gland Size | Entry Thread | Cable Acceptance Detail | Across Flat | Across Corner | |||
| Dia C | Length Minimum E | Dia. Max. A | Dia. Max. B | Armour Dia. D | |||
| 20 S | 20 | 10 | 11.6 | 16.00 | 0.9/1.25 | 22.00 | 25.00 |
| 20 L | 20 | 10 | 14.00 | 20.00 | 0.9/1.25 | 25.40 | 28.50 |
| 25 S | 25 | 10 | 19.00 | 24.00 | 1.25/1.60 | 30 | 33.60 |
| 25 L | 25 | 10 | 20.00 | 27.00 | 1.25/1.60 | 33.00 | 37.00 |
| 32 S | 32 | 10 | 24.00 | 30.50 | 1.60/2.00 | 38 | 43.00 |
| 32 L | 32 | 10 | 26.20 | 33.00 | 1.60/2.00 | 40.00 | 45.00 |
| 40 S | 40 | 11 | 30.00 | 37.00 | 1.60/2.00 | 44.50 | 50.00 |
| 40 L | 40 | 11 | 32.50 | 41.00 | 1.60/2.00 | 46.50 | 52.00 |
| 50 S | 50 | 13 | 40.00 | 47.50 | 2.00/2.50 | 55.00 | 62.00 |
| 50 L | 50 | 13 | 44.00 | 52.60 | 2.00/2.50 | 59.00 | 66.00 |
| 63 S | 63 | 14 | 51.00 | 60.00 | 2.50 | 69.00 | 76.00 |
| 63 L | 63 | 14 | 55.00 | 66.00 | 2.50 | 73.00 | 82.00 |
| 75 S | 75 | 15 | 62.00 | 72.00 | 2.50 | 83.00 | 94.00 |
| 75 L | 75 | 15 | 67.00 | 78.00 | 2.50 | 87.60 | 99.00 |
| 90 L | 90 | 20 | 79.00 | 90.00 | 2.50/3.15 | 105.00 | 118.00 |
Standards :
- BS6121 Part 1.
- IP66.
Material :
EN 12164 BS 2874 - CZ 114 BS 2874 - CZ 115 c377, BS 2874 - CZ 121 Pb3 CZ 122 UNS C36000 CDA 360 DZR Brass BS 2874 - CZ 131 CW 614 N c380, cz122, en 12165 cw617n, cw612n, cuzn40pb2 & cuzn39pb2.
Specification :
Design Features: 2 part Armour/Earth Lock, Knurled Armour Lock produces a low resistance earth clip.
Features :
CW Cable Glands suitable for SWA or rubber sheathed cables.Outer seal grips bedding layer of cable. for use in most climatic conditions Weather proof and water proof. Design has seperate armour lock rings. can be supplied with integral earth facility.
Accessories :
Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, REducers, Adaptors, etc. as per the requirement.
