BW Cable Glands


We manufacture a wide range of Brass BW Cable Glands by using quality raw material and extra component is added, a cone ring which prevents rotation of the wire and used as a knurled cone.


  • bw Cable glands

Technical Data:

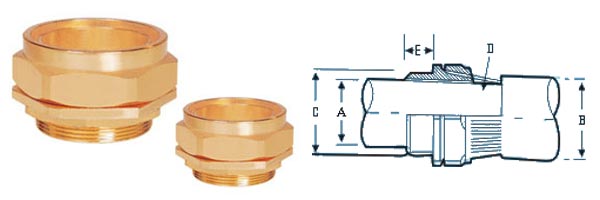

Gland Size Entry Thread Cable Acceptable Detail Across Flat Across Corner
Dia. C Length Minimum E Dia. Max. A Dia. Max. B Armour Dia. D
20 S 20 10 12.0 16.00 0.9/1.25 21.00 23.40
20 L 20 10 15.0 20.00 0.9/1.25 24.00 26.80
25 L 25 10 20.0 26.00 1.25/1.60 31.70 35.00
32 L 32 10 26.30 32.50 1.60/2.00 39.80 45.00
40 L 40 12 32.30 40.00 1.60/2.00 49.50 56.00
50 L 50 13 44.00 53.20 2.00/2.50 60.50 68.50
63 L 63 13 55.00 66.00 2.50 76.00 85.80
75 L 75 16 67.00 78.00 2.50 89.50 100.00
90 L 90 18 79.00 90.00 2.50/3.15 104.30 117.00

Application :


Indoor, For use with all tye of SWA Cable.


Cable Type :


SWA Extruded Bending Cable


Function :


Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire.


Options :


All type of accessories available like Earth Tag, PVC Shroud, Brass Lock Nut.
