Earthing Parts


We offer a wide range of earthing accessories like earth rod, earthing coupler, split connected clamp, earth rod to cable clamp and rod to tape clamp. Among these earthing accessories, coupler is available in round and hexagonal shapes. U bolts, square tape clamp, brass earth clamps, DC tape clip, flat type test clamp and multi points.

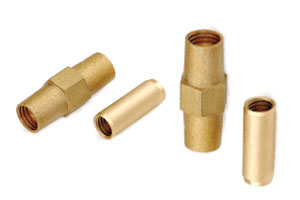

Brass Coupler


  • brass coupler
  • Size : 3/4", 5/8", 16 mm and 20 mm
  • Application : Available in round and hexagonal shapes in length of 50, 60 and 70 mm

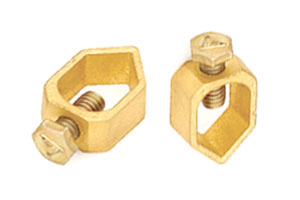

Rod to Tape Clamp (A TYPE)



  • rod to tape clamp
  • Size : 1/2", 5/8", 3/4" and 1"

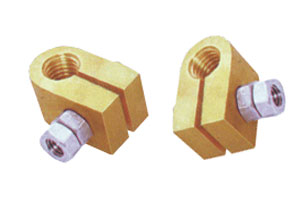

Split Connected Clamp



  • split connected clamp
  • Size : 9.5 mm, 16 mm and 20 mm
  • Application : Manufactured in gunmetal and naval brass, complete with bolt, washer and two lock nuts

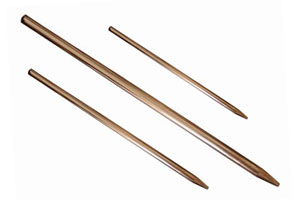

Earthing Rods / Plates & Accessories



  • earthing rods
  • Solid Copper Earth Rods
  • Swaged Earth Rods (250 Microns)
  • Earth Rod Accessories
  • Earth Rod Fittings
  • Copper Bonded Earth Plates / Latice Copper
  • Tape Clip / Saddles, Square Clamps

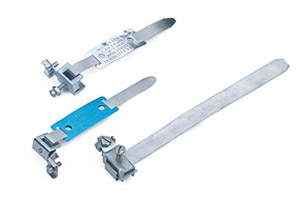

Earthing Clamps



  • earthing clamps

Special Features

  • Available in TWO terminal sizes : A-D for conductors of 2.5 mm2 - 10 MM2 & A-E for conductors of 2.5 MM2-16 MM 2 A-E being identified by its BLUE label.
  • Designed & manufactured under strict and approved quality control procedures, adhering to BS 951 standards.
  • Available in TWO colour types : RED for non corrosive dry atmosphere & BLUE for corrosive or humid conditions.
  • Easily adapted to conductor sizes upto 50 MM2 by using one of the three cable sockets.
  • Available in THREE standard band lengths to suit pipe diaineters of : 12mm - 32mm, 32mm - 5Omm, 5Omm - 75mm.
  • Larger bands available on specific orders (please specify pipe diameter).

PRODUCT CODE DESCRIPTION PACK QTY.
RED BLUE BLUE INNER OUTER
ET14 ET15 ET16 Clamp for pipe Dia. 12mm - 32mm 20 500
ET14/2 ET15/2 ET16/2 Clamp for pipe Dia. 32mm - 50mm 20 500
ET14/3 ET15/3 ET16/3 Clamp for pipe Dia. 12mm - 32mm 20 500


Colour Coding

From purchase to installation to inspection of APPLE EARTHING CLAMPS, we have colour coded our whole range. The ET14 STIRRUP is colour coded RED & is manufactured from BRASS and is only suitable for clean dry atmospheric conditions. The ET15 & ET16 STIRRUPS are colour coded BLUE & are manufactured from PHOSPHOR BRONZE and are suitable for all environments. The ETI4 & ET15 have ANODIZED ALUMINIUM labels indicating terminaI sizes A to D (2.5mm- 16mm conductors)


PRODUCT TERMINAL SIZE STIRRUP COLOUR
ET14 SERIES 2.5mm2 X 10mm2 RED
ET15 SERIES 2.5mm2 X 10mm2 BLUE
ET16 SERIES 2.5mm2 X 16mm2 BLUE
