CXT Cable Glands
We are a leading manufacturer and exporter of CXT Type Cable Glands, BW Cable Glands, Cw Cable Glands, A2 Type Cable Glands, E1W Cable Glands, Alco Cable Glands, Wiping Cable Glands, PG Cable Glands mainly exporting to USA, UK etc.

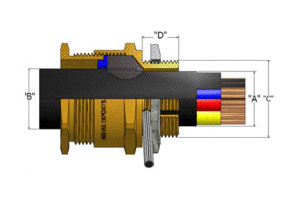

Technical Data:
| Size | Thread size “C” | Thread Length “D” |
Cable Dimension | A/F | A/C | Product Code | ||||
| Metric | BSP | NPT | A Min | B Max | ||||||
| CXT-16 | 16 | 5/8” | ½” | 15.00 | 3.10 | 8.60 | 21.00 | 23.00 | ACXT-16 | |
| CXT-20S | 20 | ¾” | ½” | 15.00 | 6.10 | 11.60 | 24.00 | 26.50 | ACXT -20S | |
| CXT-20 | 20 | ¾” | ½” | 15.00 | 6.50 | 13.90 | 27.00 | 30.00 | ACXT -20 | |
| CXT-25 | 25 | 1” | 3/4” | 15.00 | 11.10 | 19.90 | 36.00 | 39.75 | ACXT -25 | |
| CXT-32 | 32 | 1 ¼” | 1” | 15.00 | 17.00 | 26.15 | 41.00 | 46.00 | ACXT -32 | |
| CXT-40 | 40 | 1 ½” | 1 ¼”” | 15.00 | 22.00 | 32.10 | 49.25 | 55.00 | ACXT -40 | |
| CXT-50S | 50 | 2” | 1 ½” | 15.00 | 29.80 | 38.10 | 54.75 | 61.30 | ACXT -50S | |
| CXT-50 | 50 | 2 ” | 1 ½” | 15.00 | 36.90 | 43.30 | 60.00 | 66.50 | ACXT -50 | |
| CXT-63S | 63 | 2 ½” | 2 ” | 15.00 | 42.20 | 49.90 | 70.25 | 77.50 | ACXT -63S | |
| CXT-63 | 63 | 2 ½” | 2 ” | 15.00 | 48.30 | 54.90 | 74.75 | 83.00 | ACXT -63 | |
| CXT-75S | 75 | 3” | 2 ½” | 15.00 | 54.20 | 62.00 | 80.00 | 89.00 | ACXT -75S | |
| CXT-75 | 75 | 3” | 2 ½” | 15.00 | 59.80 | 66.90 | 84.00 | 94.00 | ACXT -75 | |
| CXT-90 | 90 | 3 ½” | 3” | 15.00 | 66.60 | 79.30 | 107.00 | 119.70 | ACXT -90 | |
Material :
CDA 36000, c3602, c3604, c385, cz131,cz124, cz121, cuzn39pb3 & cuzn36pb3,C 675, cz 114, cz 115, en 12165 CW 721 r & CW 722r, CW 614n, EN 12164 BS 2874 - CZ114 BS 2874 - CZ 115 c345, C 353, BS 2874 - CZ 121 Pb3 CZ 122 UNS C36000.
Function :
CXT Type Cable Glands provide a single pull resistant seal on the outer sheath of unarmoureed cable.
Application :
CXT Brass cable glands suitable for use with all types of screened flexible wire braid/wire braid armour cables. The glands provide mechanical cable retention and electrical continuity.
