E1W Cable Glands

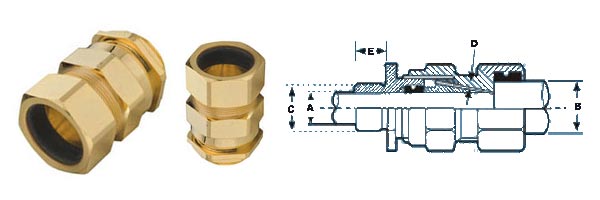

We develop comprehensive range of Brass E1W Cable Glands which are used with all types of SWA extruded bedding cable essentially produce IP 66 seal on to the outer sheath or explosion proof seal on inner sheath. These are also available with CIEL (Cast Integral Earth Lug).
Technical Data:
| Gland Size | Entry Thread | Cable Acceptance Detail | Across Flat | Across Corner | |||
| Dia C | Length Minimum E | Dia. Max. A | Dia. Max. B | Armour Dia. D | |||
| 20 S | 20 | 10 | 8.00-11.80 | 12.90-17.20 | 0.9/1.25 | 24.00 | 27.00 |
| 20 L | 20 | 10 | 11.00-14.00 | 15.50-20.80 | 0.9/1.25 | 27.70 | 31.00 |
| 25 S | 25 | 10 | 12.00-17.00 | 17.50-24.00 | 1.25/1.60 | 31.50 | 35.00 |
| 25 L | 25 | 10 | 13.00-20.30 | 24.00-27.20 | 1.25/1.60 | 35.00 | 39.00 |
| 32 S | 32 | 10 | 17.00-24.00 | 25.00-31.00 | 1.60/2.00 | 43.00 | 47.50 |
| 32 L | 32 | 10 | 19.00-26.20 | 26.70-34.00 | 1.60/2.00 | 43.00 | 47.50 |
| 40 S | 40 | 15 | 23.00-30.00 | 31.00-38.50 | 1.60/2.00 | 51.50 | 57.00 |
| 40 L | 40 | 15 | 25.00-32.20 | 33.00-40.50 | 1.60/2.00 | 51.50 | 57.00 |
| 50 S | 50 | 15 | 31.50-38.20 | 39.40-46.80 | 2.00/2.50 | 58.50 | 65.00 |
| 50 L | 50 | 15 | 36.50-44.00 | 45.70-53.20 | 2.00/2.50 | 66.00 | 73.00 |
| 63 S | 63 | 15 | 42.50-50.00 | 52.10-59.00 | 2.50 | 72.00 | 80.00 |
| 63 L | 63 | 15 | 49.10-56.00 | 58.40-66.00 | 2.50 | 80.00 | 89.00 |
| 75 S | 75 | 17 | 54.50-62.00 | 64.80-72.00 | 2.50 | 86.50 | 97.00 |
| 75 L | 75 | 17 | 60.50-68.00 | 71.10-78.00 | 2.50 | 94.00 | 105.00 |
| 90 L | 90 | 20 | 66.00-79.00 | 77.00-90.00 | 2.50/3.15 | 106.00 | 118.00 |
Standards :
EN 50262:1999.
Material :
CZ 115 c377, c380, cz122, en 12165 – cw617n BS 2874 - CZ 121 Pb3 CZ 122 UNS C36000 cw612n, cuzn40pb2 & cuzn39pb2, CDA 360 DZR Brass BS 2874 - CZ 131.
Function :
E1W glands are weatherproof glands and can be used in corrosive conditions when protected with shroud. Positive armour locking, effective earth continuity, increased mechanical strength.
Finish :
Brass Finish, Nickel Finish, Chrome Finish or as specified.
Optional Thread :
METRIC, NPT, BSP, PG or as specified.
